A damaged engineering-plastic tube must be isolated, classified and tested before anyone attempts a repair. By following the defect, material and service-pressure evidence, you can decide whether to cut back, rework, join, requalify or scrap the tube without confusing a cosmetic mark with a pressure failure.
Key takeaways
- Quarantine all tube made since the last confirmed good inspection.
- Record cracks, deformation, discoloration, measurements, batch numbers, and process conditions.
- Cut back only when sound material remains beyond the damaged section.
- Pressure-test and inspect every repaired tube before returning it to service.
Stop the Line and Quarantine the Damaged Tube
Stop the extrusion line immediately, isolate the affected tube, and quarantine every length made since the last confirmed good inspection. Do not trim, heat, weld, or sand the damage before recording evidence; those actions can hide the production cause or add thermal damage.
- Lot or batch number, resin grade, reinforcement, and colour
- Machine number, die position, and downstream station
- Barrel, die, and melt temperatures
- Melt pressure, line speed, and haul-off speed
- Defect type, length, clock position, and distance from the tube end
- Samples from before and after the defect, sealed and identified
Open a nonconformance record and give the engineering plastic tube production damage an initial category: cosmetic, dimensional, or structural. A mark on a thick, non-pressure conduit can be acceptable against the product drawing; the same gouge, pinhole, burn, or wall loss on a pressure tube can create a failure site.
Do not release a damaged section because it looks smooth after filling with melted polymer. Filler does not restore extrusion structure, wall uniformity, or pressure rating. Splits, voids, contamination, unknown heat damage, and defects crossing the pressure wall require replacement or a formally qualified repair.
Release only after the damaged section is removed or the finished tube is requalified and tested.
Identify the Defect Before Choosing a Repair
A repairable surface defect affects appearance or a non-critical outer layer without reducing the pressure wall. A split, pinhole, deep gouge, crack, burn, blister, embedded particle or soft spot is structural until inspection proves otherwise. Judge depth and position against the drawing, material specification and service-pressure calculation; no universal repair depth exists.
| Defect class | What inspection shows | Likely disposition |
|---|---|---|
| Cosmetic | Die line, light discoloration or shallow mark outside the pressure wall; dimensions remain within drawing limits | Accept only to the documented visual limit |
| Dimensional | Ovality, shrinkage or wall-thickness variation without a cut-through; measured values exceed the drawing | Rework by controlled machining or cutting only if the remaining wall passes |
| Structural | Split, pinhole, crack, blister, burn, void, contamination or deep gouge reaching the pressure wall | Cut back to sound material, formally qualify the joint, or replace the tube |
Trace the cause before changing a setting:
- Record lot number, resin drying record, melt temperature, die pressure, line speed, haul-off tension, cooling conditions and defect position along the tube.
- Link wall variation to die eccentricity, unstable melt flow or drawdown; link ovality to tension, sizing, cooling or inadequate support.
- Treat roughness or sharkskin as a shear or melt-temperature clue, and bubbles or voids as evidence of moisture, volatiles or trapped air.
- Quarantine any tube exposed to overheating. A shiny surface and temporary dimensional pass cannot rule out polyamide molecular degradation; review residence time and pressure history before mechanical or pressure requalification.
Choose Between Cutting Back, Joining, Forming and Replacement
For extruded polyamide tube damage, cut back to clean, round, undamaged material whenever the defect is local and enough length remains for the required connection. A split, pinhole, burn, blister, contamination, or unexplained soft zone is not a cosmetic defect; it compromises pressure integrity and normally calls for replacement or a formally qualified joint.
| Option | Use it when | Reject it when |
|---|---|---|
| Cutting back | Damage ends before sound tube, and the remaining length meets drawing and assembly requirements | Wall loss, ovality, cracking, or heat damage continues beyond the visible defect |
| Mechanical joining | A rated sleeve, ferrule, or coupling matches the tube size, pressure, temperature, chemicals, and movement | The joint creates excessive stress, leakage risk, restricted bore, or no validated pressure rating |
| Controlled forming or thermal joining | The procedure specifies tooling, temperature window, uniform heating, cooling, and post-repair checks | You have only a heat gun, uncertain moisture history, thin wall, crystallinity changes, oxidation, or a second heat-affected zone |
| Replacement | Damage is structural, widespread, contaminated, dimensionally unstable, or of unknown origin | Never reject replacement merely to recover a suspect tube |
Reject heat repair as an industrial tube failure repair method when it means uncontrolled reheating. A heat gun can produce ovality, local thinning, residual stress, and molecular degradation; annealing cannot restore strength lost to a cut, void, burn, or hydrolysis.
Reject adhesive patching for pressurised polyamide unless testing validates surface preparation, temperature, chemicals, creep, peel, permeation, and pressure life. Solvent cement is not a dependable nylon repair route. Drying and moisture control belong in the qualified process, not as an assumption after damage.
Requalify the Tube After Repair
A repaired tube is fit for service only when its dimensions, joint condition and pressure performance meet the drawing and material specification. Record results against the original lot, not against a visual impression of plastic tube recovery.
Measure the repaired length, outside diameter, inside diameter, wall thickness at several clock positions, ovality, and joint alignment. Check the bore for steps, flash, blockage and loose particles. A single wall reading can miss a thin quadrant beside the repair.
Use this release sequence:
- Inspect the surface under suitable lighting for cracks, pinholes, burns, blisters and whitening.
- Compare every dimension with the drawing tolerance, including the minimum wall thickness at the joint and adjacent heat-affected zone.
- Perform the specified hydrostatic proof test with the correct medium, pressure, temperature and hold time; record pressure loss and visible leakage.
- Test a representative repaired sample to burst pressure when the repair method, material, or thermal history has changed. A passing proof test alone does not establish the new burst rating.
- Use pneumatic testing only under an approved procedure with shielding, because compressed gas stores far more hazardous energy than water.
| Test type | What it proves | Release decision |
|---|---|---|
| Dimensional inspection | Geometry and minimum wall remain within drawing limits | Pass only if every critical dimension complies |
| Hydrostatic proof | No leak or pressure loss at the specified service test | Pass supports release, not a higher rating |
| Burst test | Repair-process strength under destructive loading | Qualifies the repair method and limits |
Reject the tube if pressure falls, the joint weeps, or thermal damage leaves uncertain material strength. Annealing can relieve stress; it cannot restore a cut or degraded polymer.
Prevent Repeat Failures and Control Replacement Material
Do not raise die temperature and restart the line until you know which variable moved. For nylon tube production problems, correct the cause in the process record, not just the visible defect. Record the lot, resin moisture result, die and melt temperatures, extrusion pressure, line speed, haul-off tension, cooling settings and defect position.
Close the loop with these checks:
- Compare wall-thickness readings around the circumference; inspect die centring, melt-pressure stability and drawdown.
- Check ovality against haul-off tension, sizing, cooling and tube support.
- Review melt temperature and shear conditions for roughness or sharkskin.
- Test drying and venting when bubbles, voids or blisters appear; moisture and trapped air need different corrections.
- Segregate regrind by exact resin grade, reinforcement, colour and contamination history. Dry moisture-sensitive nylon, set a documented regrind percentage, and track cumulative heat history because viscosity and molecular weight can change.
Plastic tube recovery is acceptable only when the recovered section meets the drawing and the validated repair and pressure-test procedure. Do not return contaminated, burned, pinholed, cracked or heat-damaged material to pressure service.
Choose replacement when the defect is structural, its heat history is unknown, the original wall cannot be verified, or a qualified joint cannot restore the pressure rating.
For a replacement request, give Classic Polymers & Resins the drawing, resin grade, dimensions, pressure requirement and service temperature; substituting a similar-looking nylon tube can create a new failure.
Related products

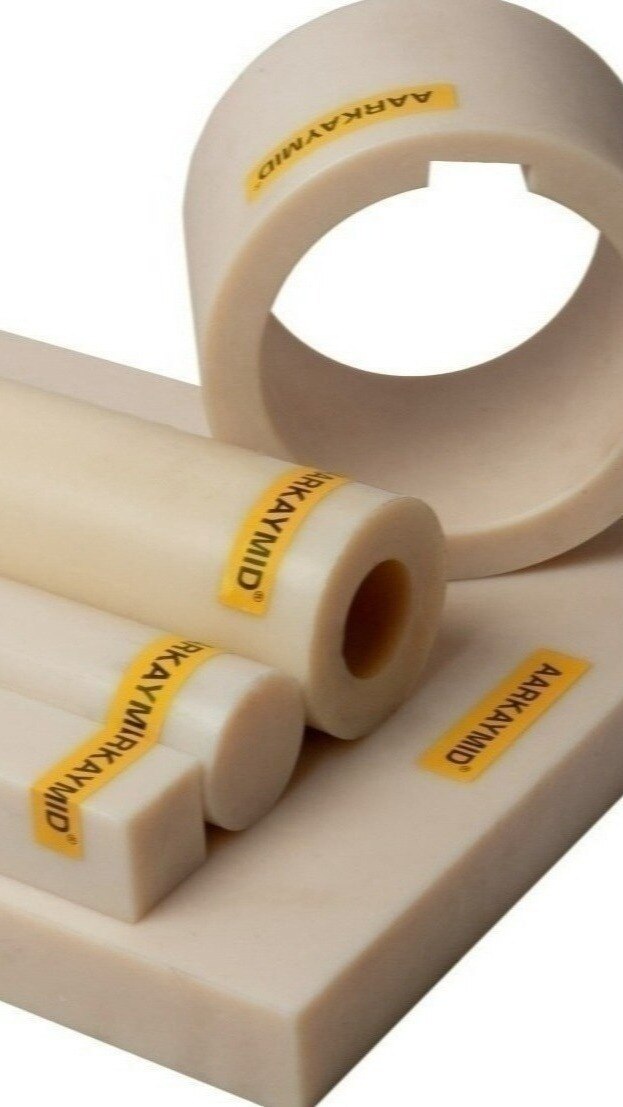

 | Polyamide PA 612 Cast Polyamide 6 (Cast Nylon 6 or PA 6) is one of the most versatile thermoplastics. View product → |
